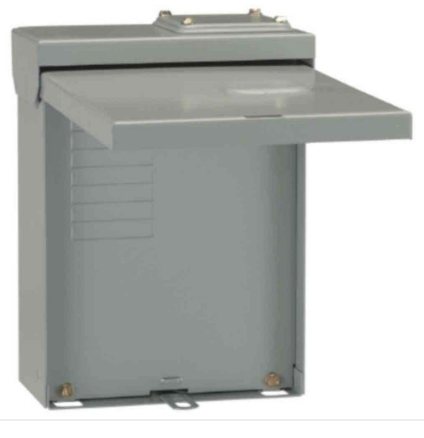

GE 125 Amp Outdoor Main Lug Load Center 8 Circuits

GE PowerMark Gold 125 Amp 4-Space 8-Circuit Outdoor Load Center - TL412R1P

GELC125-8-OUT
Pricing
Available in increments of 1
Quantity
 Total Discount Per Unit
1
 $59.55 0% $59.5500
2
 $113.15 5% $56.5725
5
 $267.98 10% $53.5950
$506.18 15% $50.6175
$952.80 20% $47.6400
$1,161.23 25% $44.6625
$4,168.50 30% $41.6850






Coleman Air







PRODUCT DESCRIPTION

Offering full-length neutral bars for fast and easy wiring, this GE 125 amp 4-Space 8-Circuit Outdoor Main Lug Load Center accommodates standard GFCI, AFCI and GE circuit breakers. With a copper buss bar for excellent conductivity, this load center features holes rated for 14 - 4 AWG wire. The maximum electrical capacity of this load center is 240 VAC with a 22,000 AIC rating.


  • Copper buss bar for excellent conductivity
  • Full-length neutral bars for fast and easy wiring
  • All holes are rated for 14 - 4 AWG wire
  • Single-phase, 3-wire, 125 amp, 240 VAC and 22,000 AIC rating
  • Compatible with standard GFCI, AFCI and GE circuit breakers
  • UL listed and ANSI certified
  • UL Listed
  • MFG Brand Name : GE
  • MFG Model # : TL412R1P
  • MFG Part # : TL412R1P

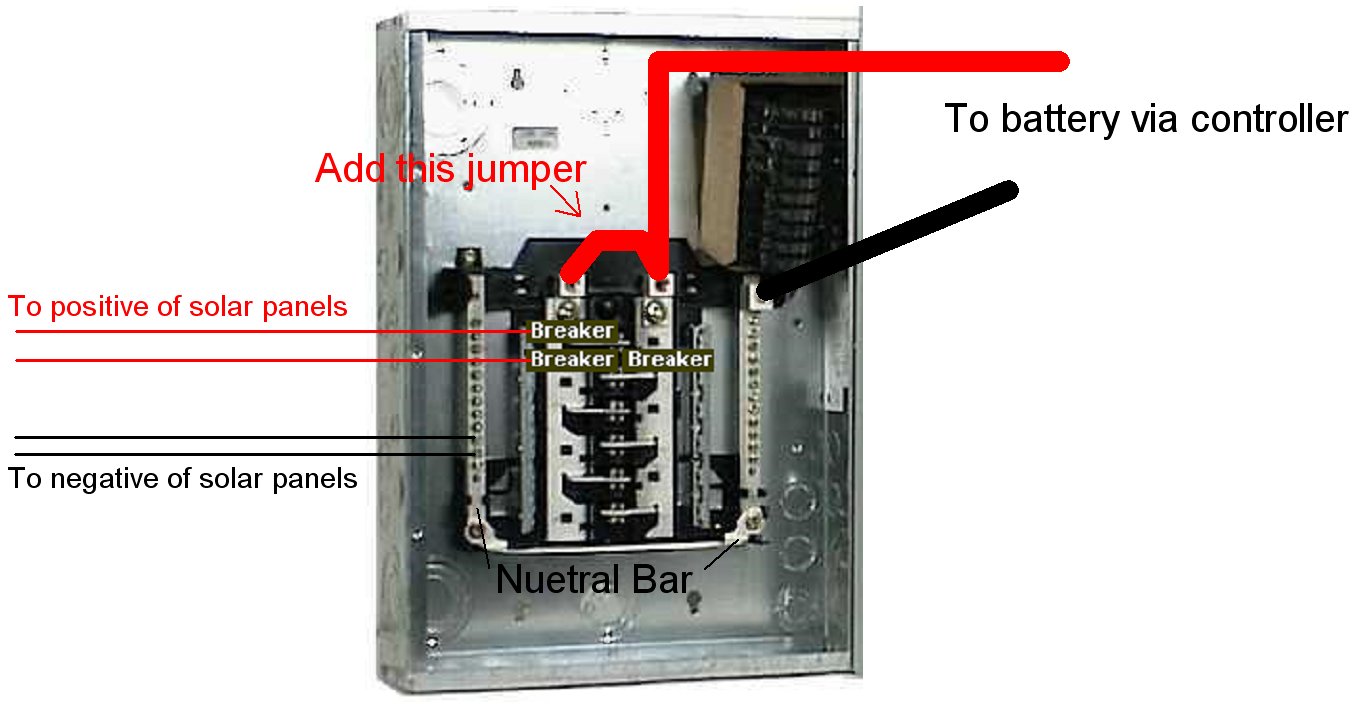

The image above demonstrates how to use a standard A/C load center as a solar combiner box. This load center may or may not be the same as the one being sold on this page, it is shown for reference purposes only. Please see the top of this page for a picture of the item being sold thru this page. Click here for more information on wiring solar panels using this method.

SPECIFICATIONS

ANSI Certified  Yes  Assembled Depth (in.)  3.8 in
Assembled Height (in.)  10 in  Assembled Width (in.)  7.3 in
CSA Listed  No  Electrical Product Type  Load Center
Indoor/Outdoor  Outdoor  Load Center Type  Main lug
Load center depth (in.)  3.75  Load center height (in.)  10
Load center width (in.)  7.25

Maximum Amperage (amps)  125 A  Maximum Voltage  240 V
Mounting type  Plug In  Number of Spaces  4
Number of phases  1  Product Series  GE
Product Weight (lb.)  7

UL Listed  1-UL Listed

Assembled Depth (in.)  3.8 in


Assembled Width (in.)  9.0 in


Electrical Product Type  Load Center


Item Package Type  Cardboard Container


Load center depth (in.)  3


Load center width (in.)  7.25


Maximum Amperage (amps)  125 A


Mounting type  Plug In


Number of phases  1
